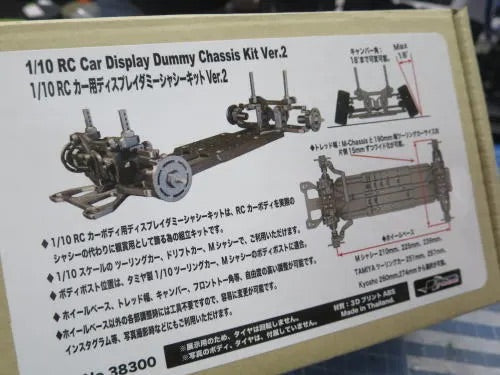

Dummy Chassis 1:10 Ver.2

This item is available for all 1/10 touring cars, drift cars and Tamiya M chassis. It can be used by all RC enthusiasts and also by body manufacturers (for product photo shoots and social media promotion).

The mounting position of the body is optimised for Tamiya's 1/10 Touring Car and M-Chassis body post positions.

The overall dimensions are as follows:

Wheelbase: Five different wheelbases are possible: M-Chassis 210mm, 225mm & 239mm. Touring car 251mm and 257mm.

Track width: M-Chassis and 190mm Touring Car can both be widened by 15mm on each side.

Camber angle: variable up to 18°.

Apart from the wheelbase, no tools are required for adjustment, so changes can be made easily.

It can be used by all RC enthusiasts and also by body manufacturers (for product photo shoots and social media promotion).

1. This product is a dummy chassis for the presentation of 1/10 RC bodies. It cannot be driven. Please use it for display purposes ONLY.
2. Wheelbase, track width, front and rear camber and front toe-in angle can be widely adjusted according to the displayed model.
3. The parts of the product are 3D printed (ABS resin). Please ensure that it is not exposed to inappropriate temperatures and/or strong impacts.
4. Please note that the product may have a typical 3D-printed surface finish.
5. Standard track width 15mm left/right
