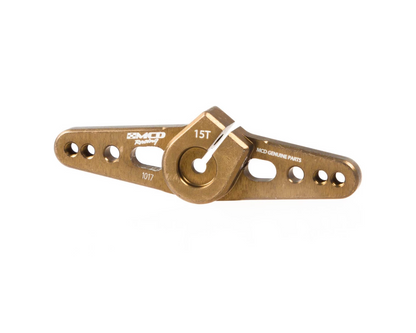

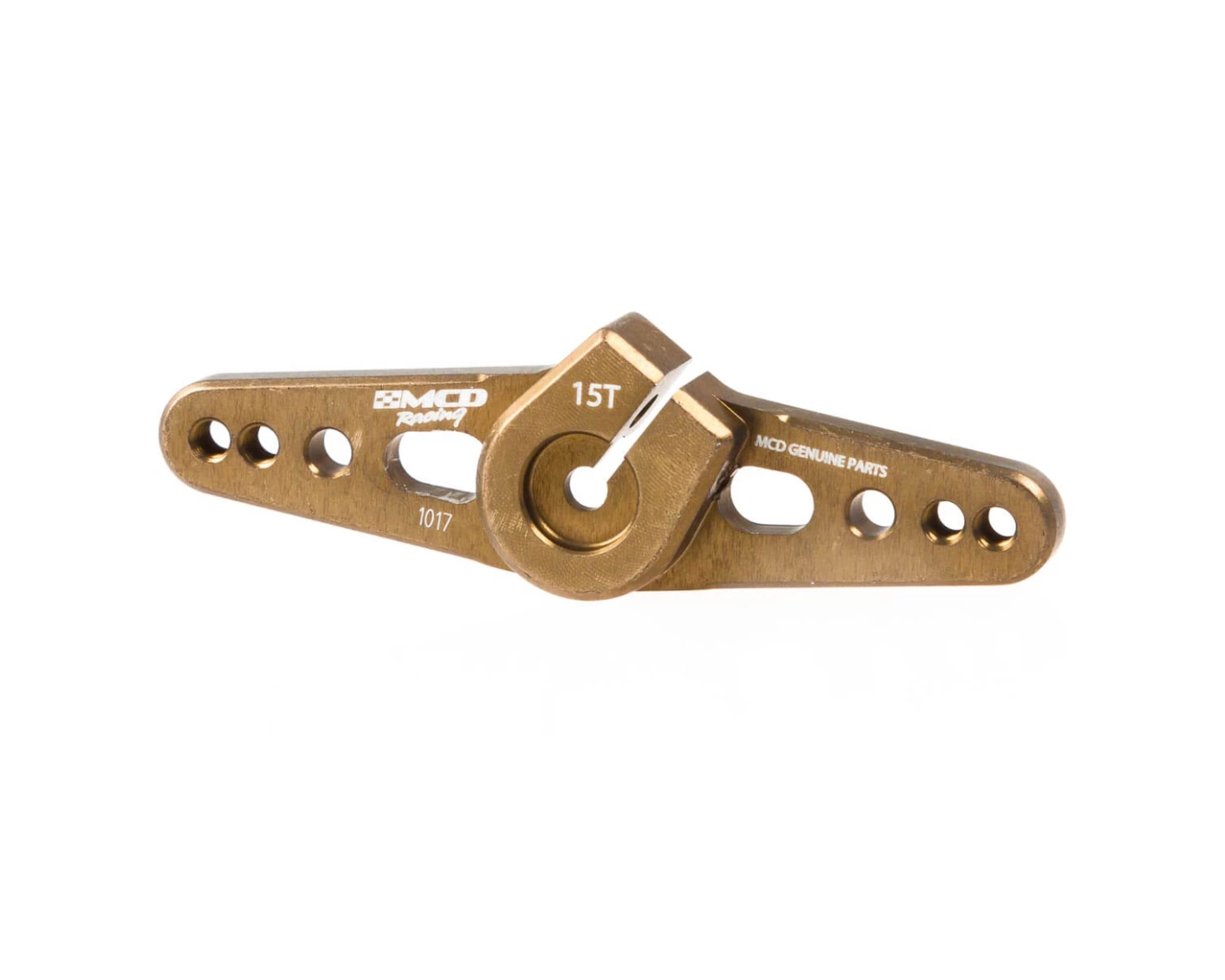

Double Side Servo Arm 15 Teeth Rhino / Hitec / Large scale Servo

THE SERVO ARM FOR LARGE MODELS THAT VALUE SAFETY AND PERFORMANCE

This servo horn from MCD Racing should be your first choice when looking for a stable and reliable dual servo arm.

With 15 teeth, it fits perfectly on servos like the Savöx SV-0235, the Rhino Pro SHV, or the Hitec D845 & D840 WP series.

Thanks to its design, steering linkages, for example, can be mounted very low on the servo, ensuring even better power transmission.

For maximum safety, a clamping screw slightly tightens the teeth, thus optimally enclosing the servo output. It also prevents the servo arm from popping off should the upper screw be lost.

Features

Extremely stable
Perfect power transmission
Optimal fit on the servo
Double screw fastening to prevent accidental loss
Suitable for almost all large-scale model servos
Technical Data

For 15-tooth servos

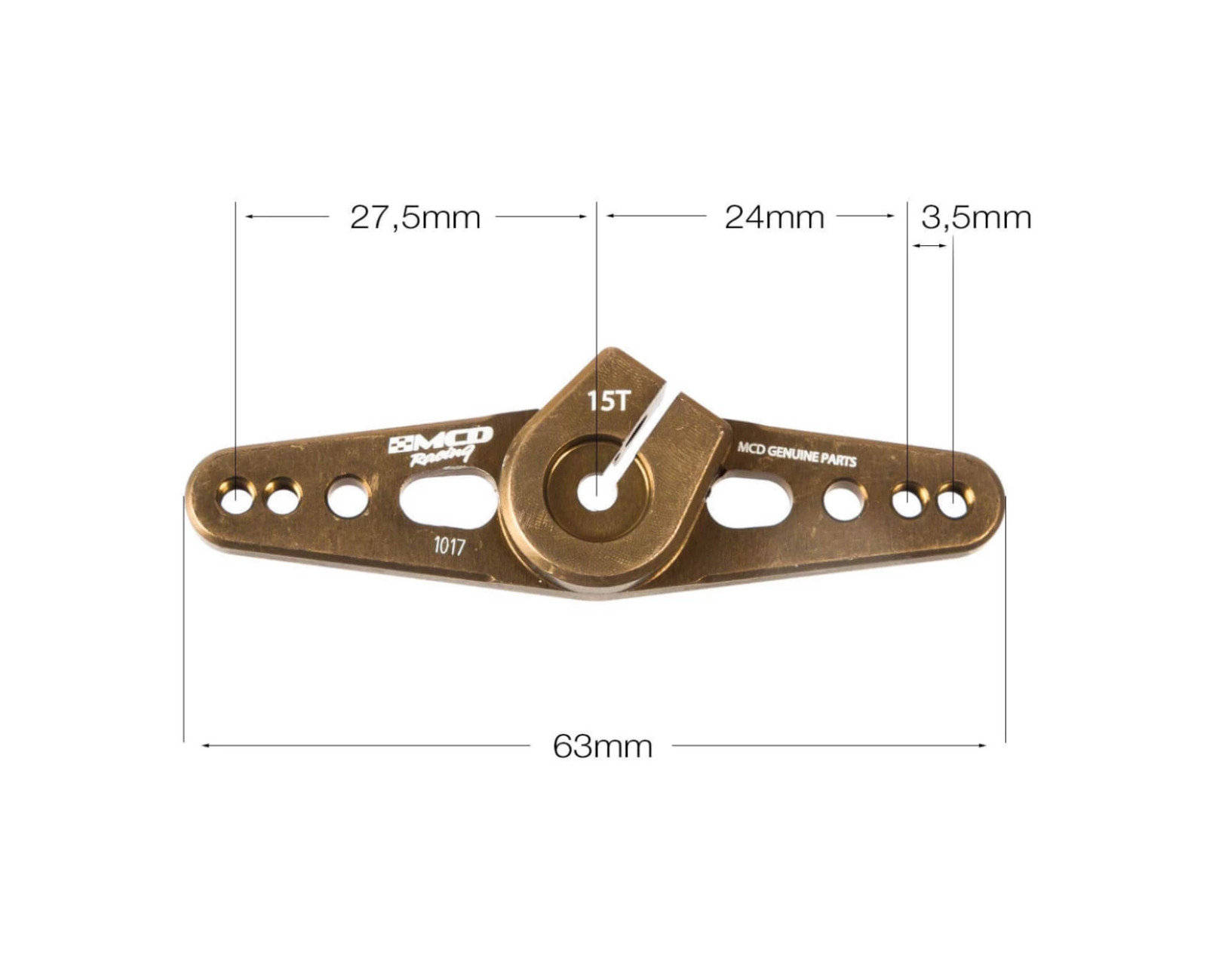

Length: 63mm
Hole spacing:
27.5mm (center/outer)
24mm (center/inner)
55mm (outer/outer)
48mm (inner/inner)

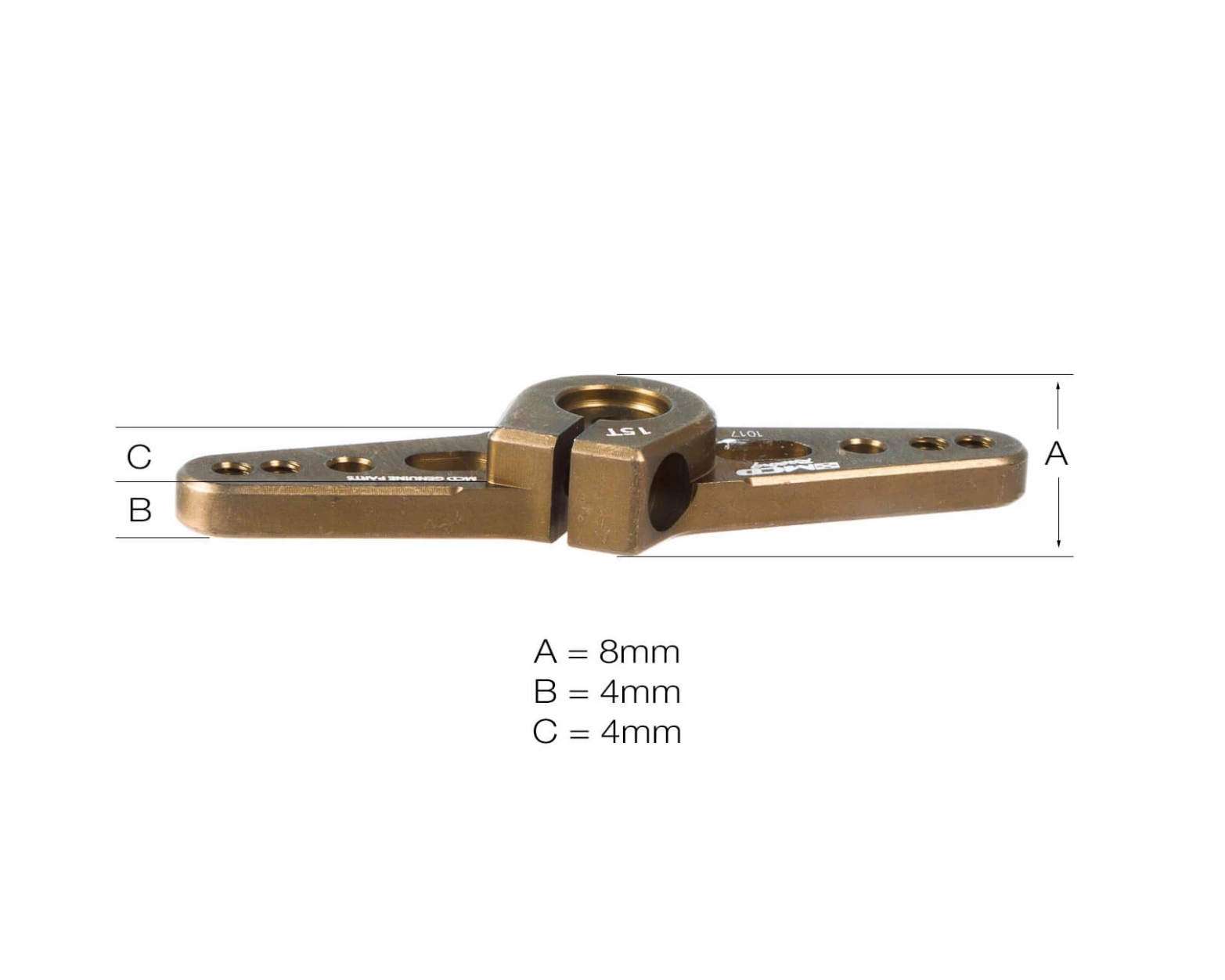

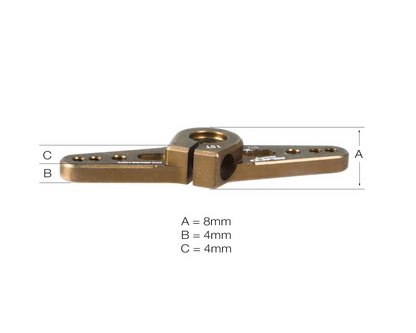

Overall height: 8mm
Arm height: 4mm
4 holes with M3 threads
Weight: 8g

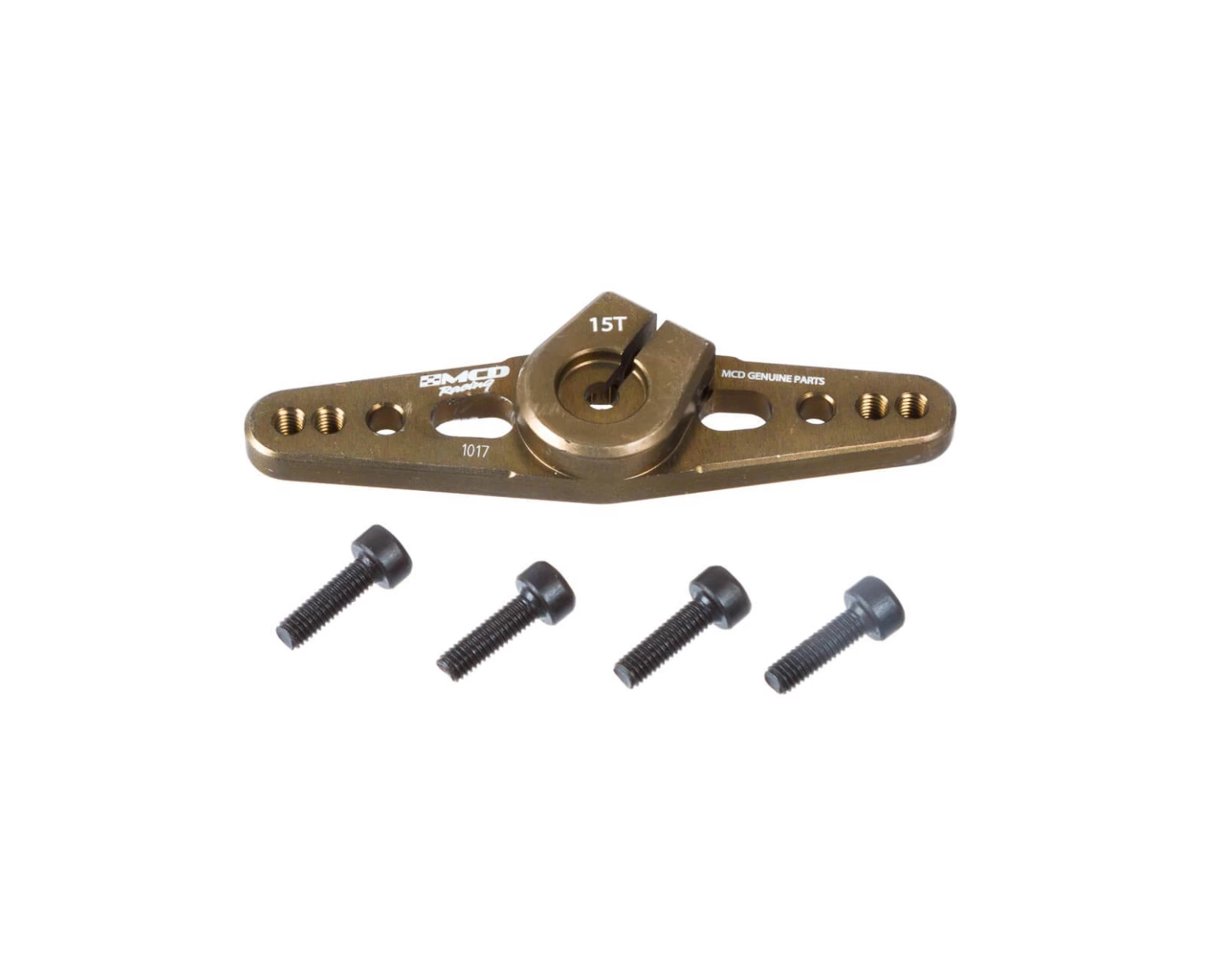

Scope of delivery

Aluminum double servo arm
4 pcs. M3 x 10mm screws
